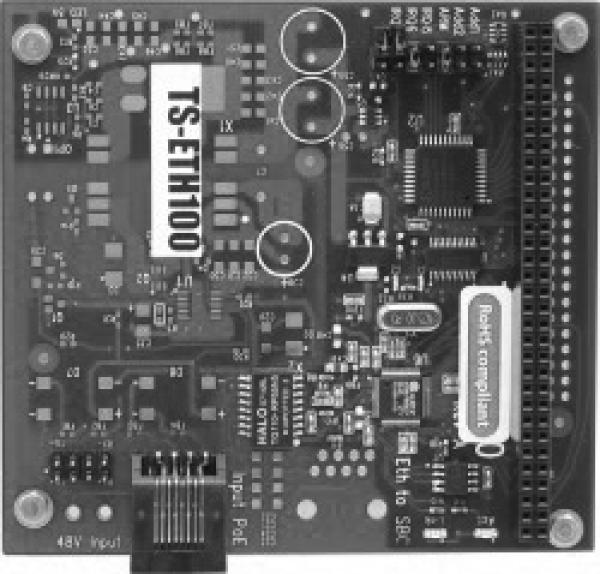

TS-ETH100 Front View TS-ETH100 Front View

TS-ETH100

10/100 Ethernet Peripheral

Lifecycle: Fully Developed | Released: April 2008

The TS-ETH100 is a PC/104 peripheral board (standard format) that provides a 10/100 Ethernet port. The TS-ETH100 is compatible with both embeddedTS x86 and ARM single board computers.

  • Linux driver and software provided
  • NE2000 compatible register map
  • LEDs indicate cable link and activity
  • Jumper selectable IRQ and I/O regions
$81 (Qty. 1)
No minimum order quantity on standard products.
Contact Sales Get Support Order Now
Manual

The TS-ETH100 is a PC/104 peripheral board (standard format) that provides a 10/100 Ethernet port. The TS-ETH100 is compatible with both embeddedTS x86 and ARM single board computers.

The TS-ETH100 provides an integrated 10/100 ethernet port through the ASIX AX88796B embedded MAC with on-chip PHY. It interfaces with the PC/104 connector via 16-bit data bus and the register map is NE2000 compatible.

The TS-ETH100 jumpers select one-of-three IRQ lines and one-of-four I/O address regions. Also, it is possible to do PC/104 16-bit access using only the 64-pin PC/104 connector in ARM mode if the ARM jumper is ON. Jumpers IRQ5, IRQ6 and IRQ7 (ARM IRQs 22, 33 and 40, respectively) selects the desired ISA IRQ line for the TS-ETH100 MAC.

There are two on-board LEDs for the MAC, indicating speed of the link and network activity on the cable.

The register map of ASIX AX88796B ethernet chip is NE2000 compatible, so driver support is straight-forward. embeddedTS provides a Linux driver for the ASIX Ethernet interface suitable for both Kernel versions 2.4 and 2.6.

Detailed Feature List

  • Linux driver and utilities available
  • 10/100 Ethernet Port
  • Jumper selectable I/O and IRQ
  • PC/104 Dimensions 3.6 x 3.8 inches
  • LED indicators for link and activity

embeddedTS provides complete documentation for our mature products, including manuals, schematics, mechanical drawings, etc. The most recent documentation files are always made available through our website. If you don't find the documentation you are looking for, contact support for more information. Also, please make sure to visit our Embedded Systems Support webpage, and our official documentation.

Documentation
Software Download
From the Blog:
Product Notices:
Subscribe to the Product Communication System (TS-PCS) for TS-ETH100 Notices
Quantities
Product Configurations 1
TS-ETH100-104 $94
TS-ETH100-64 $81
Product Configuration
Part Description Price
TS-ETH100-104 PC/104 10/100 Ethernet Adapter with 104 pin bus (required for X86 boards) Pricing
TS-ETH100-64 PC/104 10/100 Ethernet Adapter with 64 pin bus (for TS-Arm-based products) Pricing
